PP Rotary Drum Filter for Koi Pond & Commercial Aquaculture Water Treatment
Product Overview
Our fully automatic PP rotary drum filter is a core mechanical filtration equipment specially developed for koi fish ponds, ornamental fish breeding pools, and intensive aquaculture systems. Powered by stable 220V voltage, this self-cleaning drum filter delivers highly efficient solid-liquid separation, effectively solving the common water turbidity, residual feed accumulation, fish manure deposition and organic debris pollution problems in pond water bodies. Constructed with premium anti-corrosion PP polypropylene material as the main tank body, the equipment features outstanding durability, long service life and ultra-low daily maintenance cost, becoming an indispensable water purification solution for hobbyist koi keepers and professional aquaculture farms.
Core Working Principle & Superior Filtration Performance

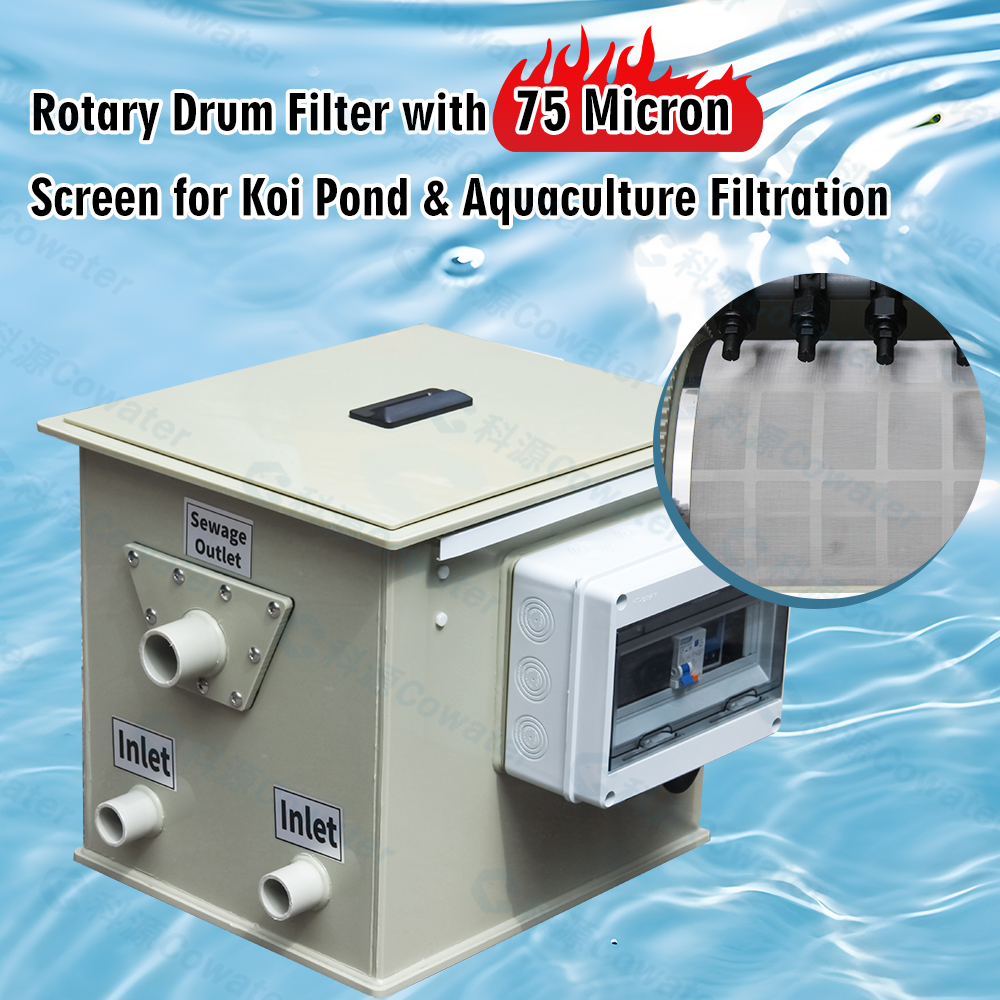

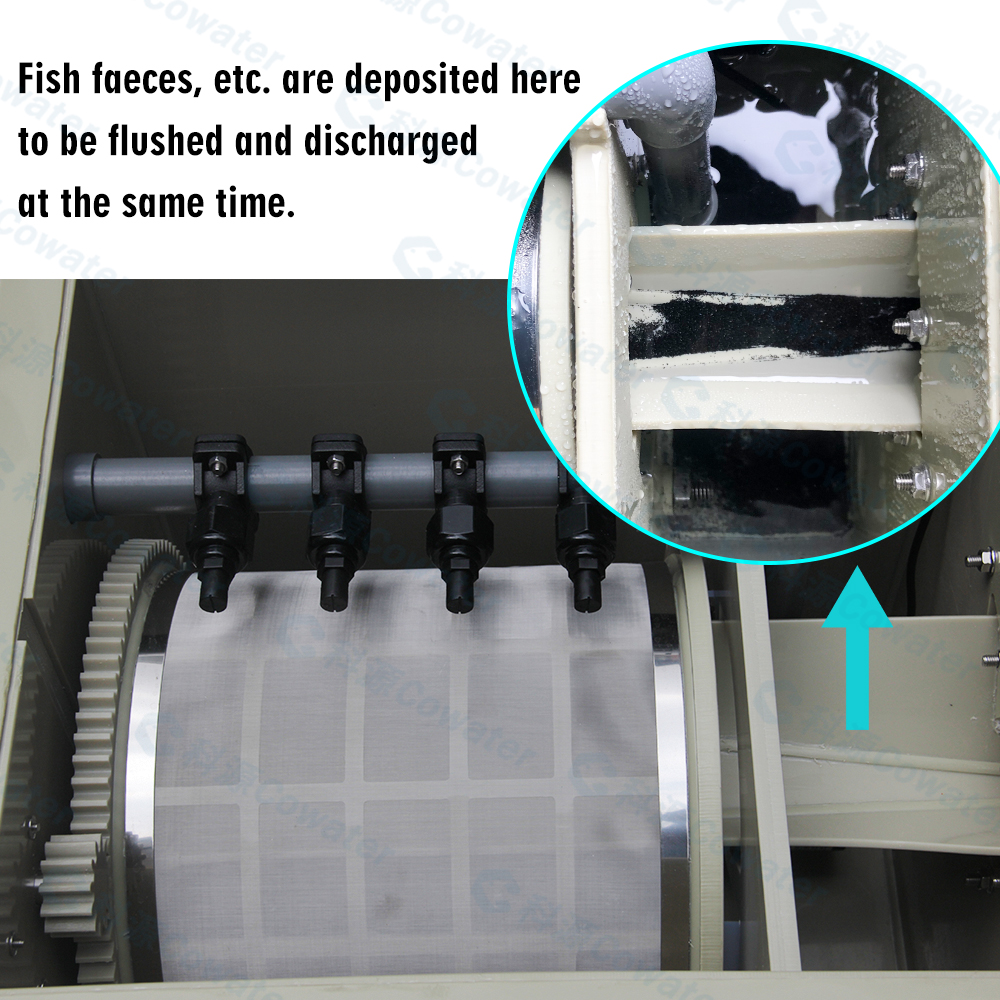

The filter adopts a 75-micron precision stainless steel filter screen as the key filtering medium, which can intercept tiny suspended particles that most conventional filter boxes cannot capture. When pond water flows into the equipment through dual water inlets, solid waste such as fish feces and leftover feed is blocked on the surface of the rotating drum screen, while clean water penetrates the screen and flows back to the pond via the water outlet. Equipped with a floating ball liquid level sensor and intelligent control box, the machine realizes automatic operation: once the filter screen is clogged and the internal water level rises to the set threshold, the control system will automatically trigger the drum rotation and high-pressure backwashing spray device. The high-pressure water jet instantly washes off the intercepted dirt into the sewage discharge port for centralized discharge, completing the whole self-cleaning cycle without manual intervention.
Structural Advantages & Reliable Configuration

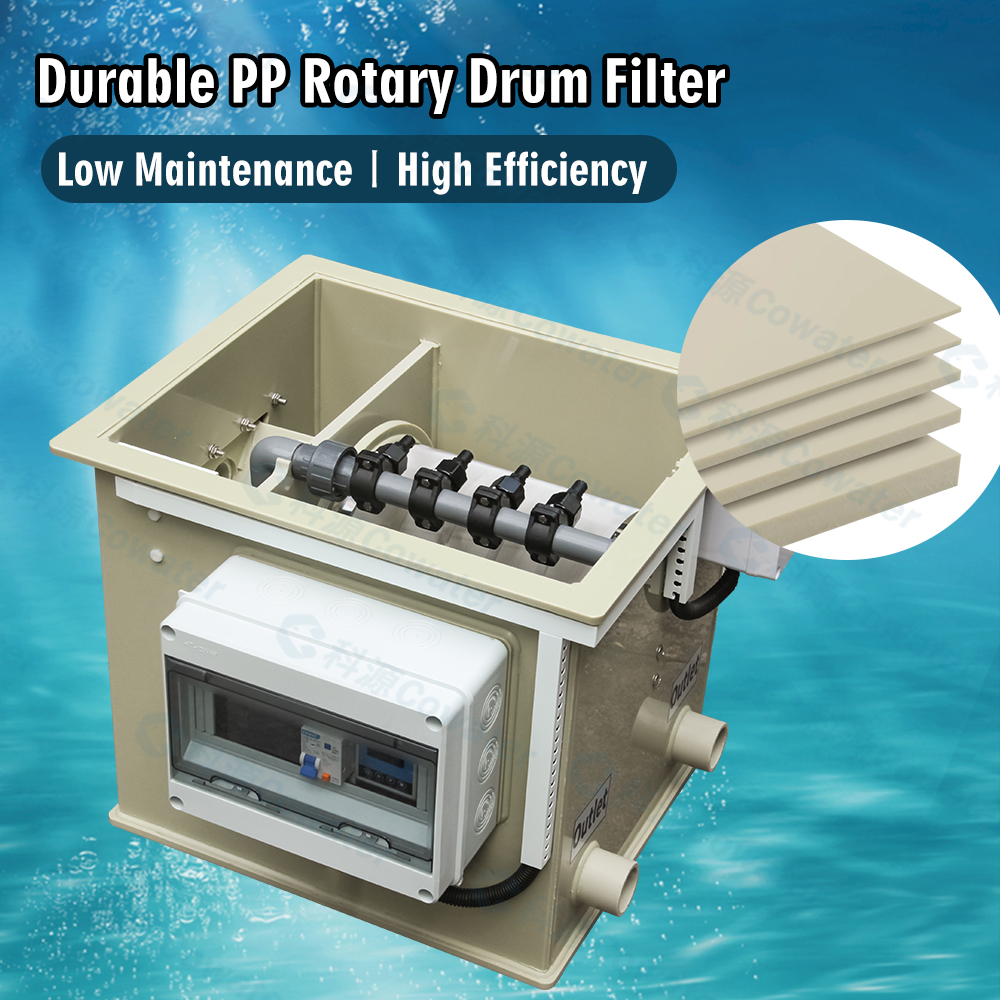

- Corrosion-resistant PP Integral Housing: The whole box is made of thickened PP plates, resistant to water immersion, acid and alkali erosion, not easy to deform, crack or age, perfectly adapting to long-term humid outdoor pond working environment.

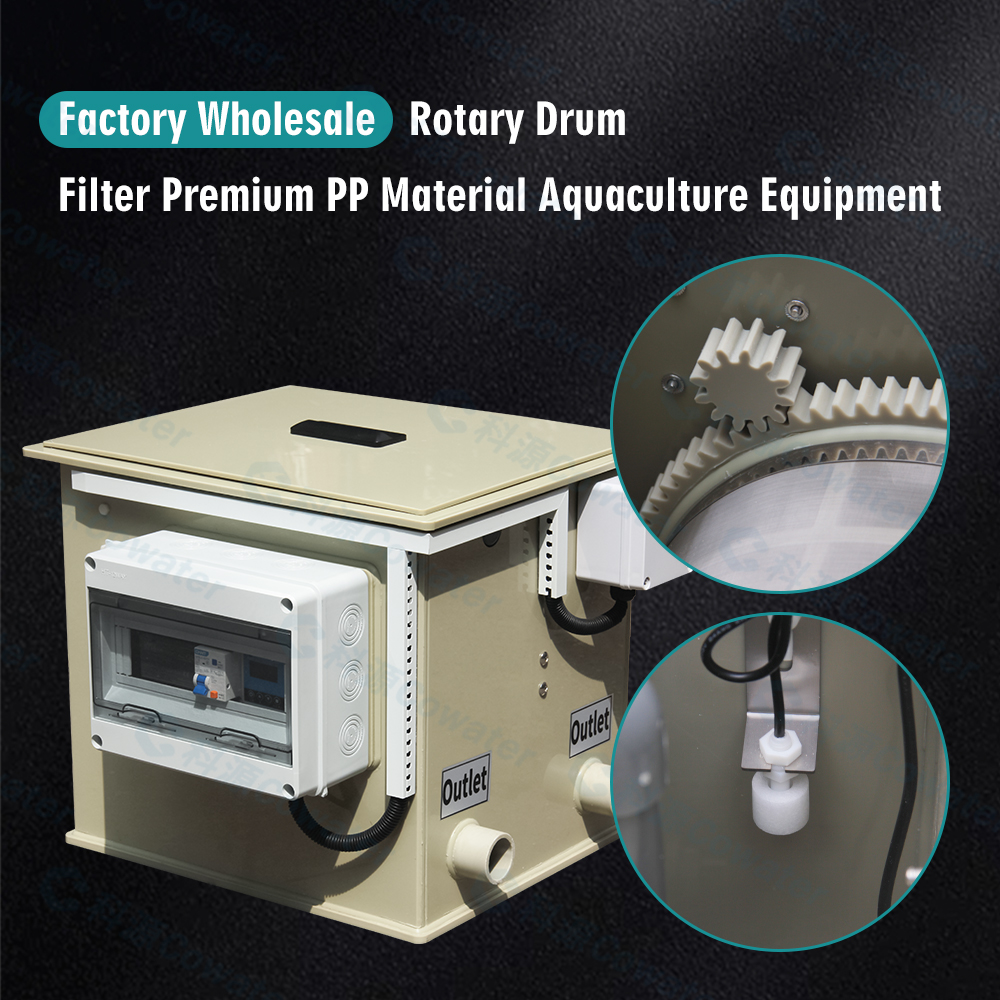

- Stable Transmission System: Precision engineering plastic gear drive structure ensures smooth drum rotation, low noise and little wear, greatly reducing later replacement and repair frequency.

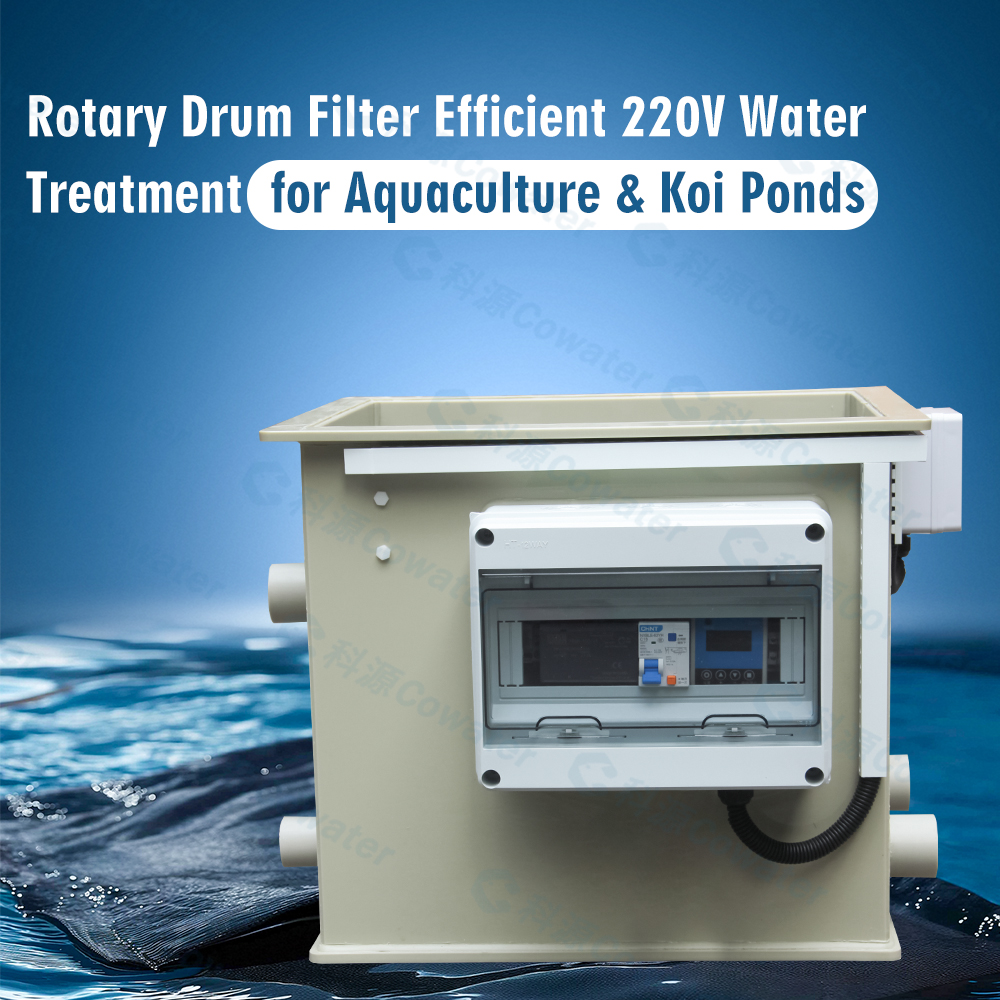

- Complete Intelligent Electric Control System: Standardized waterproof electrical control box with overload protection switch and operation display panel guarantees safe and stable running under complex working conditions.

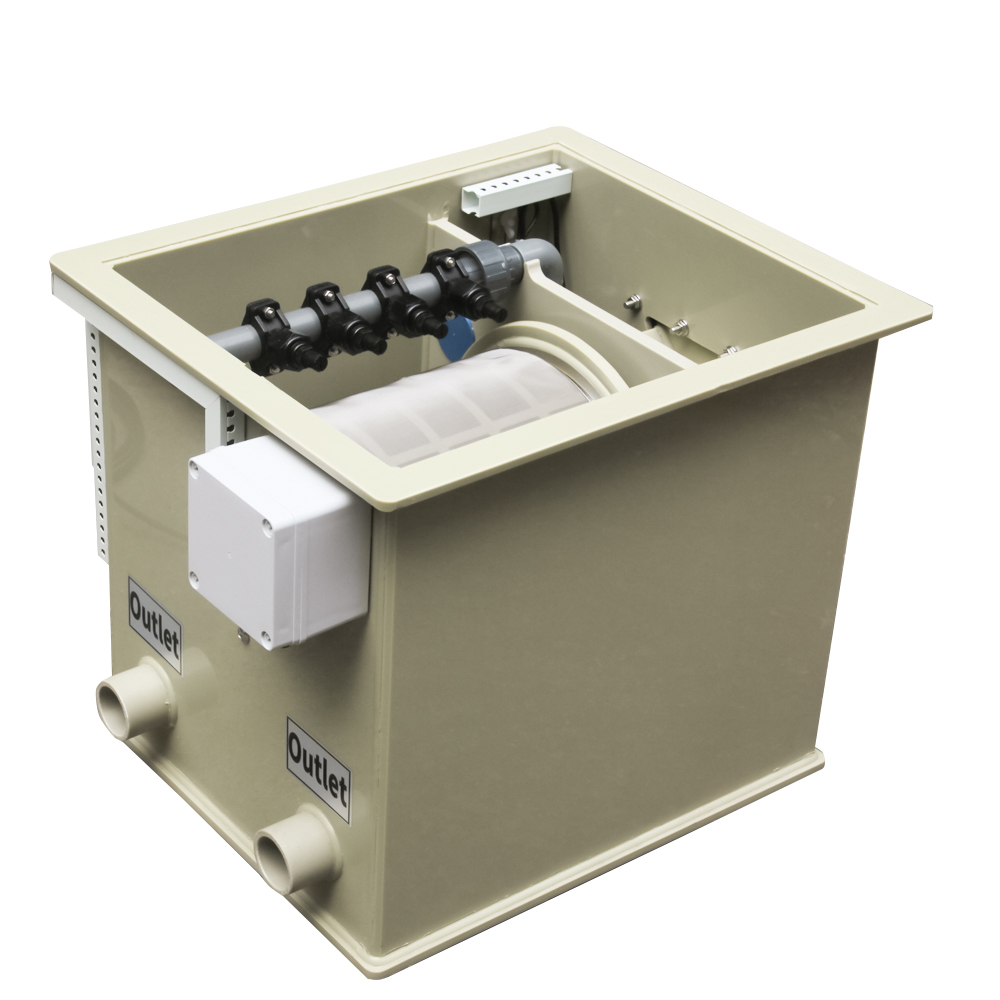

- Reasonable Pipeline Layout: Clear marked water inlet, clean water outlet and sewage outlet facilitate quick pipeline connection and installation; the top removable maintenance cover allows convenient internal inspection and screen replacement.
Wide Application & Value for Users
This rotary drum filter is widely applied in backyard koi ponds, landscape ornamental fish pools, indoor recirculating aquaculture systems, shrimp and fish breeding tanks, and small-scale industrial circulating water treatment. Its biggest highlight lies in drastically cutting down manual cleaning work: no frequent cleaning of filter cotton and filter media is needed, effectively lowering labor input. Long-term stable water clarity greatly improves the living environment of aquatic creatures, reduces the risk of water quality deterioration and fish disease outbreaks, lowers the frequency of water change, and saves water resources and operating costs.
Available for factory direct wholesale and customized specifications, our rotary drum filter balances high filtration efficiency, automatic operation and cost-effectiveness, bringing long-term clear, healthy and stable water quality for all aquaculture and pond landscaping projects.
